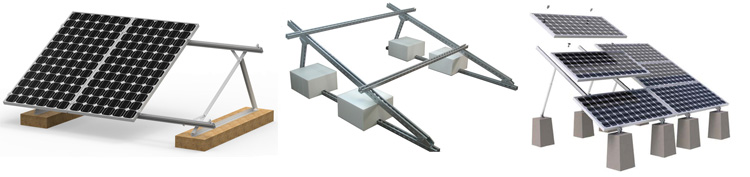

Description of Flat Roof Solar Mounting Kits
The flat roof solar mounting kits are applicable to large scale flat roof solar panel installation. It allows solar array to tilt angle 5-30 degrees with the rooftop. The Solar Mounts for Flat Roofs can be pre-designed a fixed angle or use adjustable brackets for customer’s requests. They can be mounted directly on the concrete rooftop or mounted on blocks. The extruded aluminum olar mounting kits are highly pre-assembled to make the whole installation easy and quick to save labor time and cost.
Parameter of Flat Roof Solar Mounting Kits
|
Installation site |
Concrete flat roof |
|
Material |
Aluminum 6005-T5, Stainless steel SUS304 |
|
Color |
Natural silver, oranodized black |
|
Surface preparation |
Anodizing, stainless |
|
Max. wind load |
40m/s |
|
Max. snow load |
1.0kn/㎡ |
|
Building height |
20m |
|
Warranty |
10 years for materials |
|
Tilt angle |
10-60 degree |
|
Advantage |
Easy and fast installation, long lifespan, cost saving |
|
Our service |
OEM; Professional customization |
Information Needed to Make Mounting Solution for flat roof solar racking
1. Solar panel quantity and dimension (length * width * thickness)
2. Solar panel direction (horizontal or portrait)
3. Max wind load? And snow load?
4. Solar panel layout (rows*lines)
5. Roof shape and size (If you have roof drawing it will be best)

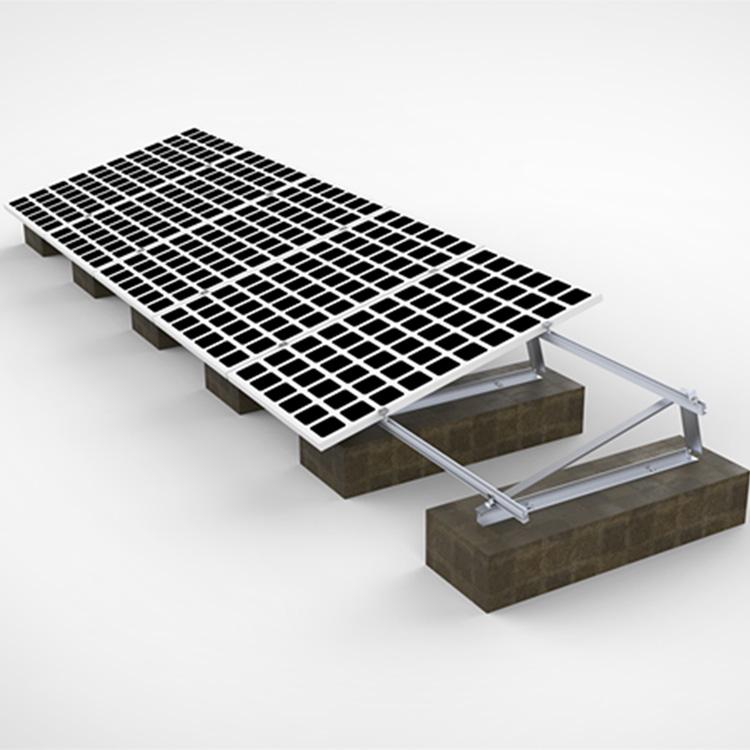

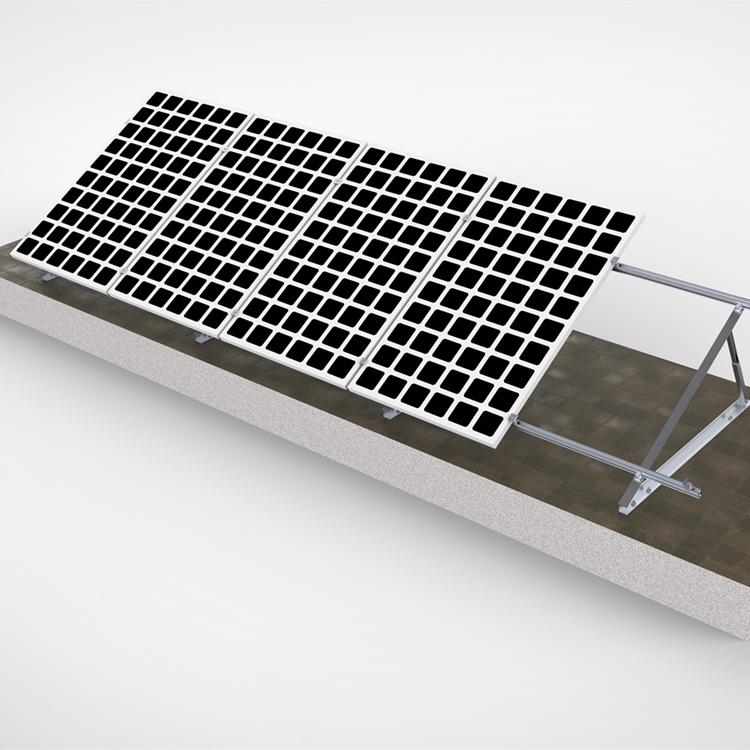

Different Mounting Solution for Flat Roof Solar Mounting Kits

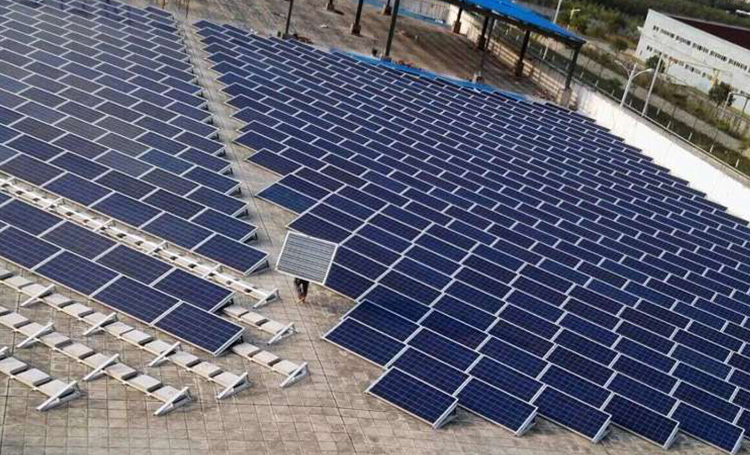

Project Show of Flat Roof Solar Mounting Kits
